Detalhes do produto
Lugar de origem: porcelana
Marca: HUAKE
Certificação: CE SGS
Número do modelo: Y81-200
Termos de pagamento e envio
Quantidade de ordem mínima: 1 GRUPO
Preço: 8000-20000 USD
Detalhes da embalagem: PACOTE DIGNO DA EXPORTAÇÃO
Tempo de entrega: 35-40 DIAS
Termos de pagamento: L/C, T/T, D/P, Western Union, Paypal, grama do dinheiro
Habilidade da fonte: 200PCS pelo ano
Modelo NÃO.: |
Y81-200 |
Porto: |
Shanghai, China |
Pacote do transporte: |
Embalagem Nude, recipiente da carga diretamente |
Especificação: |
Y81 |
Marca registrada: |
huake |
Origem: |
Jiangsu China |
Modelo NÃO.: |
Y81-200 |
Porto: |
Shanghai, China |
Pacote do transporte: |
Embalagem Nude, recipiente da carga diretamente |
Especificação: |
Y81 |
Marca registrada: |
huake |
Origem: |
Jiangsu China |

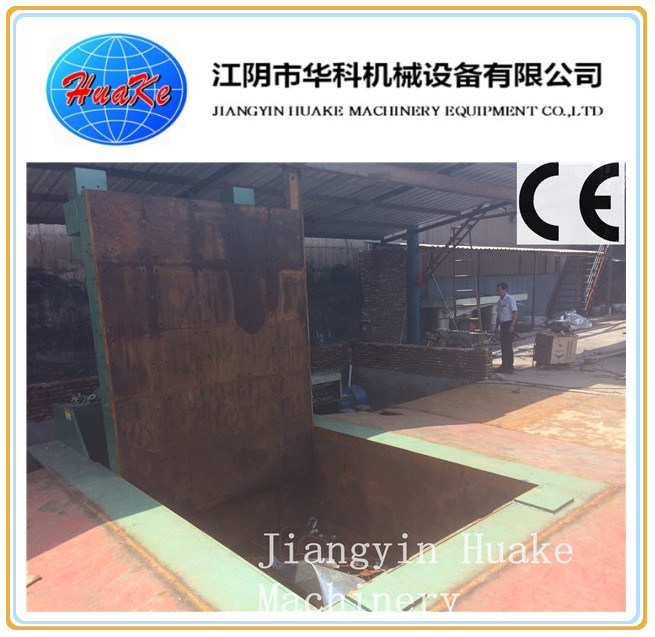

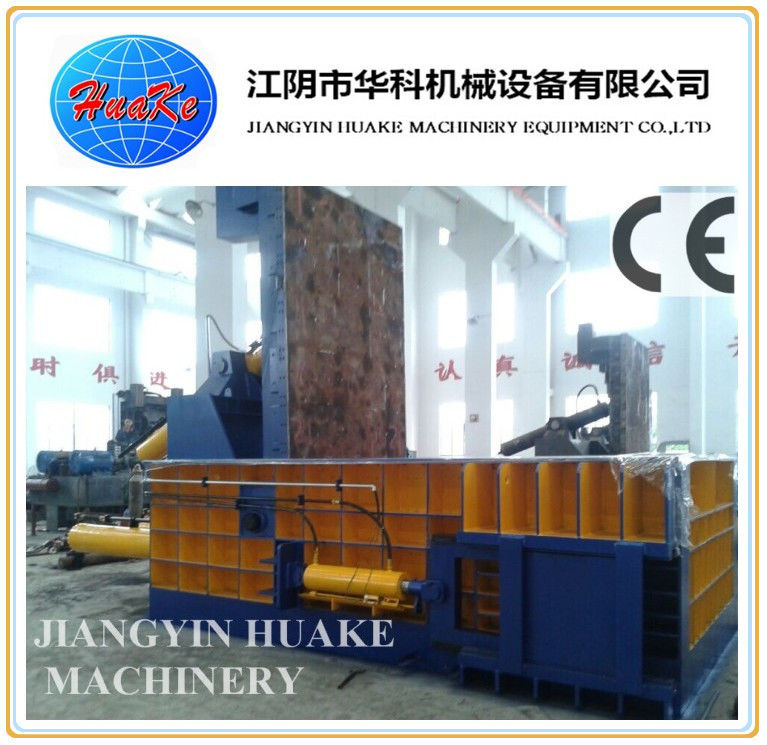

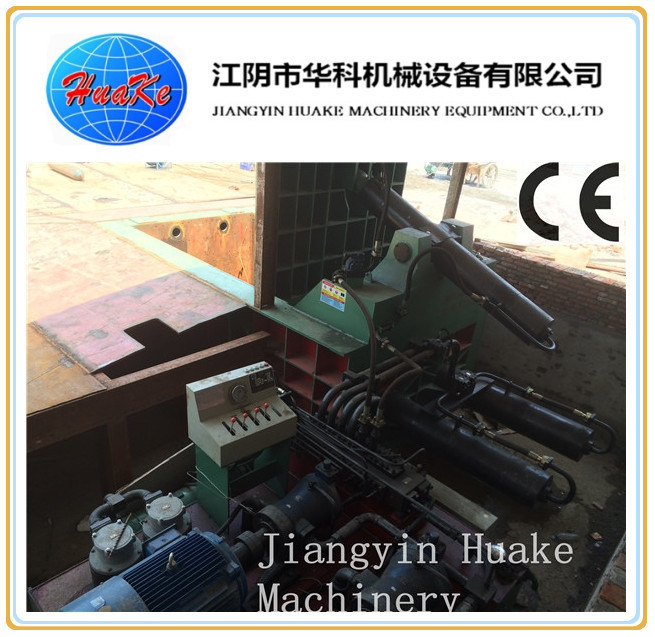

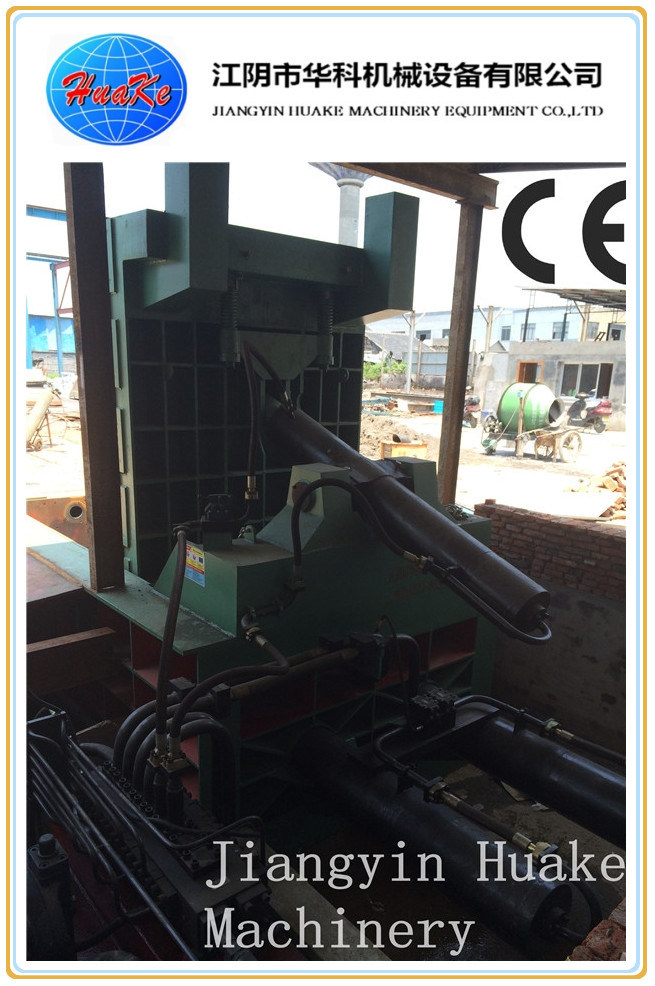

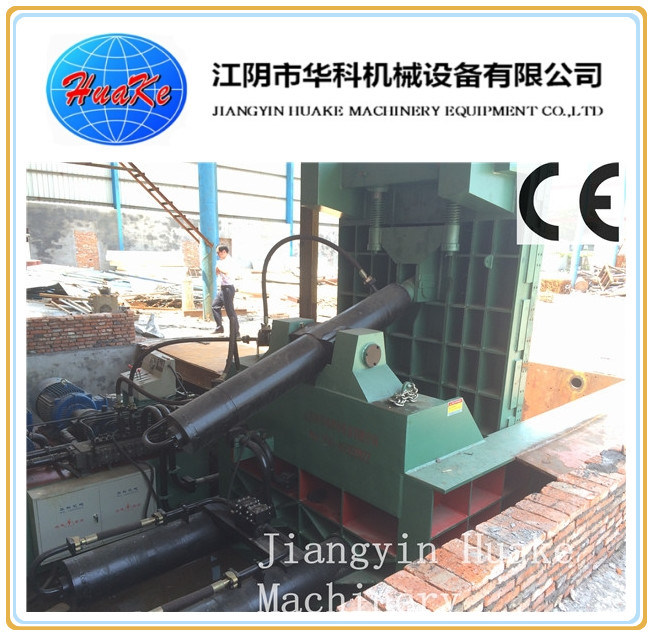

scrap steel recycling SGS Safe ferrous non -ferrous Scrap Steel Recycling Baler
81 Series Hydraulic scrap metal baler sepcs |
|||||
Type | Nominal Force | Power | Feed Box Size | Bale Size | Productivity |
( KN ) | ( KW ) | ( mm ) | (mm ) | ( kg/h ) | |
Y81-1250 | 1250 | 15 | 1200 × 700 × 600 | 300 × 300 | 800-1500 |
Y81Q-1350 | 1350 | 22 | 1400 × 600 × 600 | 600 × 240 | 1500-2200 |
Y81-1600A | 1600 | 22 | 1600 × 1000 × 700 | 350 × 350 | 2000-3000 |
Y81-1600B | 1600 | 22 | 1600 × 1200 × 800 | 400 × 400 | 2000-3000 |
Y81-2000A | 2000 | 30 | 1600 × 1200 × 800 | 400 × 400 | 2000-3000 |
Y81-2000B | 2000 | 37 | 1800 × 1400 × 900 | 450 × 450 | 2500-3500 |
Y81-2500A | 2500 | 44 | 1800 × 1400 × 900 | 450 × 450 | 3000-5000 |
Y81-2500B | 2500 | 44 | 2000 × 1400 × 900 | 500 × 500 | 3000-5000 |
Y81-2500C | 2500 | 60 | 2000 × 1750 × 1000 | 500 × 500 | 3500-5000 |
Y81-3150A | 3150 | 60 | 2000 × 1400 × 1000 | 500 × 500 | 3500-5000 |
Y81-3150B | 3150 | 60/66 | 2000 × 1750 × 1200 | 500 × 500 | 3500-5000 |
Y81-3150C | 3150 | 90 | 2600 × 2000 × 1200 | 550 × 550 | 4000-7000 |
Y81-4000A | 4000 | 66 | 2000 × 1600 × 1100 | 550 × 550 | 4000-7000 |
Y81-4000B | 4000 | 110 | 2600 × 1750 × 1200 | 550 × 550 | 5000-8000 |
Y81-4000C | 4000 | 90 | 3000 × 2000 × 1200 | 600 × 600 | 6000-8000 |
Y81-6000 | 6000 | 135 | 5000 × 2000 × 1200 | 700 × 700 | 8000-10000 |
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.
Applications:

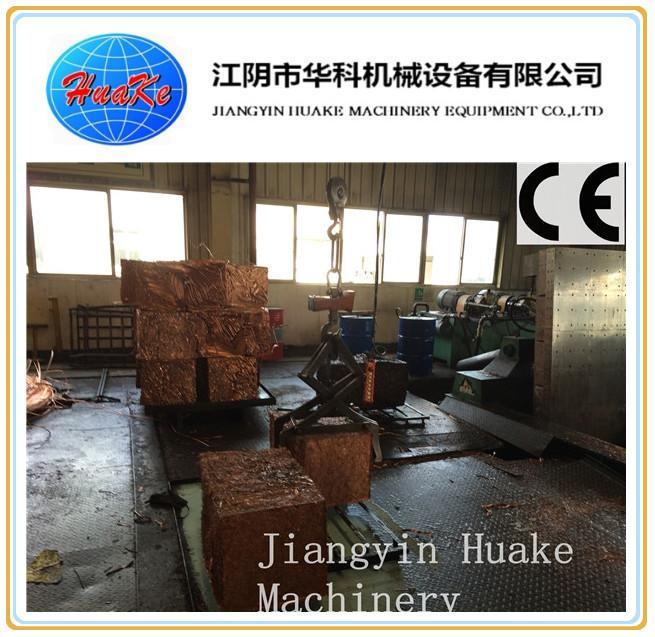

Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.
Baler can deal with the following martials, pls feel free to check and contact us!
Features
1. Driven by hydraulic system, this turn out baler is highlighted by resoanble design, compact structure, small volume, light weight, small inetia of movement, low noise, stable traveling performance, flexible operation and so on.
2. Under the integrated hydraulic and electrical control, it is easy for operation and maintance.
3. With wide applicable range, this product can work as the processing equipment in scrap metal recycling unit. It is also suitable for processing the furnace charge in the foundry of factory. The equipment offers powerful adaptabiity for the working conditions.
4. Our turn out baler performs with low energy consumption, easy installation, secure operation, high working efficiency, low price and other merits.
CE SGS safe Scrap Steel Recycling Baler
